Designing Steam Systems for Efficiency and Longevity

Steam systems are expected to deliver reliable, safe heat transfer, consistent performance and long service life. Achieving these outcomes starts long before equipment is installed. Careful steam system design lays the foundation for energy efficiency, operational reliability, safety and lower lifetime costs.

Every decision made during the design stage influences how the system performs over many years. Pipe sizing, condensate management, pressure control and equipment selection all contribute to energy efficiency, maintenance requirements, operational resilience and safety. Investing time in good design helps businesses reduce energy consumption, improve process performance, minimise unplanned downtime and extend equipment life.

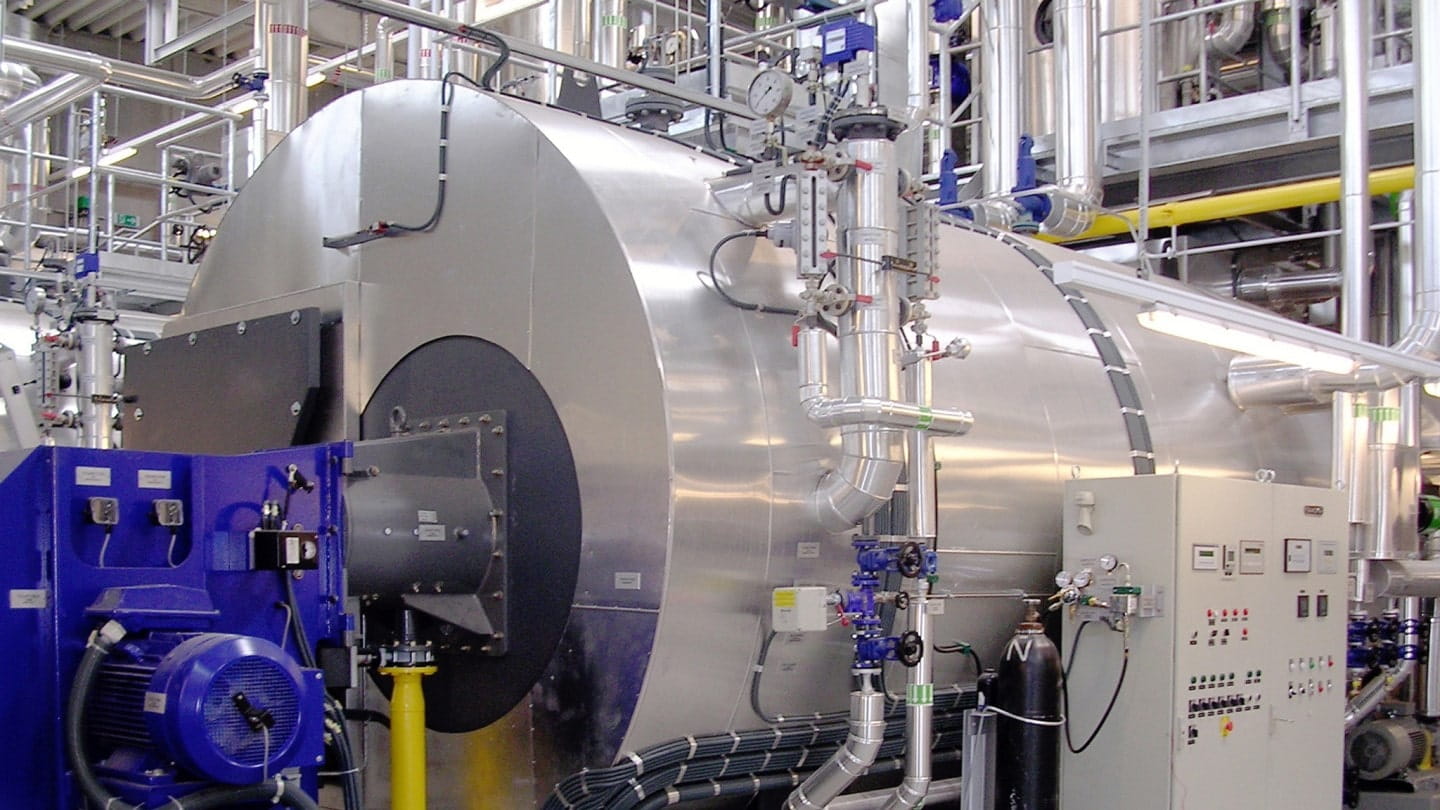

Why steam system design matters

A well-designed steam system does more than transport steam from the boiler to the point of use. It ensures high-quality steam reaches each application at the correct pressure, in the right condition and with minimal energy loss.

Poor design can create challenges that persist throughout the life of the system. Excessive pressure drops; inadequate drainage, waterhammer, steam starvation, erosion, corrosion, reduced steam quality and heat losses can all reduce efficiency while increasing maintenance costs, creating safety risks and shortening the lifespan of equipment.

By focusing on efficient steam system design from the outset, organisations can improve reliability while supporting operational, sustainability and safety objectives.

Start with a clear understanding of demand

Effective steam system design begins with a detailed assessment of process requirements. Different applications often require different steam pressures, temperatures and flow rates. Understanding these demands allows engineers to size equipment correctly and avoid unnecessary energy consumption.

Planning for future change is equally important. Systems designed with adaptability and future-proofing in mind can accommodate changing production requirements without requiring extensive modifications.

Design considerations should include:

• Current and future steam demand
• Process operating conditions
• Peak load requirements
• Production schedules
• Opportunities for heat recovery

Designing with the future in mind is equally important. Steam systems should be capable of accommodating emerging technologies, decarbonisation initiatives and evolving energy strategies without requiring major modifications. Allowing for future upgrades helps organisations improve sustainability, enhance energy performance and meet changing environmental objectives.

Prioritise correct pipe sizing

Pipework plays a critical role in steam distribution. Oversized pipework increases installation costs, increases heat loss and reduces steam dryness, leading to poorer process efficiency. Undersized pipework can cause excessive pressure drop, higher steam velocities and poor system performance.

Correct sizing helps maintain high-quality steam throughout the network while reducing energy losses. It also supports operational stability and consistency by delivering steam reliably across all areas of the system.

The layout of the distribution network should minimise unnecessary pipe runs and incorporate sufficient drainage points to prevent condensate accumulation and reduce the risk of waterhammer.

Manage condensate effectively

Condensate is a natural by-product of every steam system. Removing condensate—and, in some cases, air—quickly and efficiently protects equipment while maintaining heat transfer performance.

A well-designed condensate recovery system reduces energy consumption by returning hot condensate to the boiler plant. This lowers fuel demand, reduces water treatment requirements and improves overall boiler efficiency.

Effective condensate management also helps prevent corrosion, erosion, waterhammer and heat exchanger stall caused by excessive backpressure, all of which can lead to reduced efficiency, safety concerns and costly repairs if left unresolved.

Select appropriate steam trapping solutions

Steam traps are essential components within efficient steam systems. Their role is to remove condensate while preventing the loss of live steam.

Choosing the right trap for each application depends on operating pressure, condensate load and process requirements. Correct selection helps maintain system efficiency while reducing maintenance requirements and ensuring reliable operation.

Positioning and accessibility should also be considered during the design phase, making future inspection and servicing simpler, safer and more cost-effective.

Optimise pressure control

Steam pressure has a direct impact on both process performance and energy efficiency.

Operating at higher pressures than necessary increases energy consumption and places additional stress on equipment. Conversely, operating at excessively low pressures can increase installation costs due to larger distribution infrastructure, increase heat losses to the atmosphere and create a risk of insufficient pressure at the point of use.

Pressure reducing stations should therefore be designed to deliver stable downstream pressure while accommodating variations in demand. Accurate pressure control improves process consistency, energy efficiency and extends the life of connected equipment.

Monitoring pressure throughout the system also provides valuable operational insight and diagnostics, supporting proactive maintenance and continuous performance improvement.

Reduce heat loss through insulation

Even the most carefully designed steam system will lose energy if pipework and equipment are not properly insulated.

High-quality insulation reduces heat loss, improves personnel safety and helps maintain steam quality throughout the distribution network. Valves, separators and other components should also be insulated where appropriate to maximise energy savings.

Where regular inspection or servicing is required, specially designed removable insulation jackets provide easy access while maintaining thermal performance. Regular inspection ensures insulation remains effective throughout the system's operational life.

Design for maintenance

Maintenance should never be an afterthought. Systems designed with accessibility in mind allow routine inspections and servicing to be carried out safely and efficiently.

Isolation valves, test points and monitoring equipment should be positioned to support maintenance activities without disrupting production unnecessarily.

Where maintenance access is required, designers should consider safe isolation requirements during the design stage. Providing double isolation facilities, such as double block and bleed arrangements where appropriate, can improve maintenance safety and help meet recognised industry good practice.

Designing for maintainability reduces downtime and helps identify developing issues before they become more significant problems.

Consider monitoring from the beginning

Modern monitoring technologies provide valuable data that can improve long-term system performance.

Incorporating measurement and monitoring during the design stage allows operators to track steam usage, identify energy losses and detect equipment faults earlier. This supports informed maintenance planning, continuous optimisation and improved operational decision-making.

Performance data can also help organisations identify opportunities for further efficiency improvements as operating conditions evolve.

A long-term investment in performance

The benefits of effective steam system design extend well beyond commissioning. Systems that are carefully planned typically deliver lower operating costs, improved safety, greater reliability and longer equipment life throughout their service.

By considering steam demand, condensate recovery, pressure control, insulation, monitoring and maintainability from the outset, organisations can build efficient steam systems that continue to perform year after year.

Taking a whole-system approach ensures every component works together to support operational efficiency, reduce energy waste, improve safety and maximise return on investment throughout the lifetime of the steam system.
